CA-42 nokia cable to arduino pinout

July 27 2011, 10:10 AM  by docjava

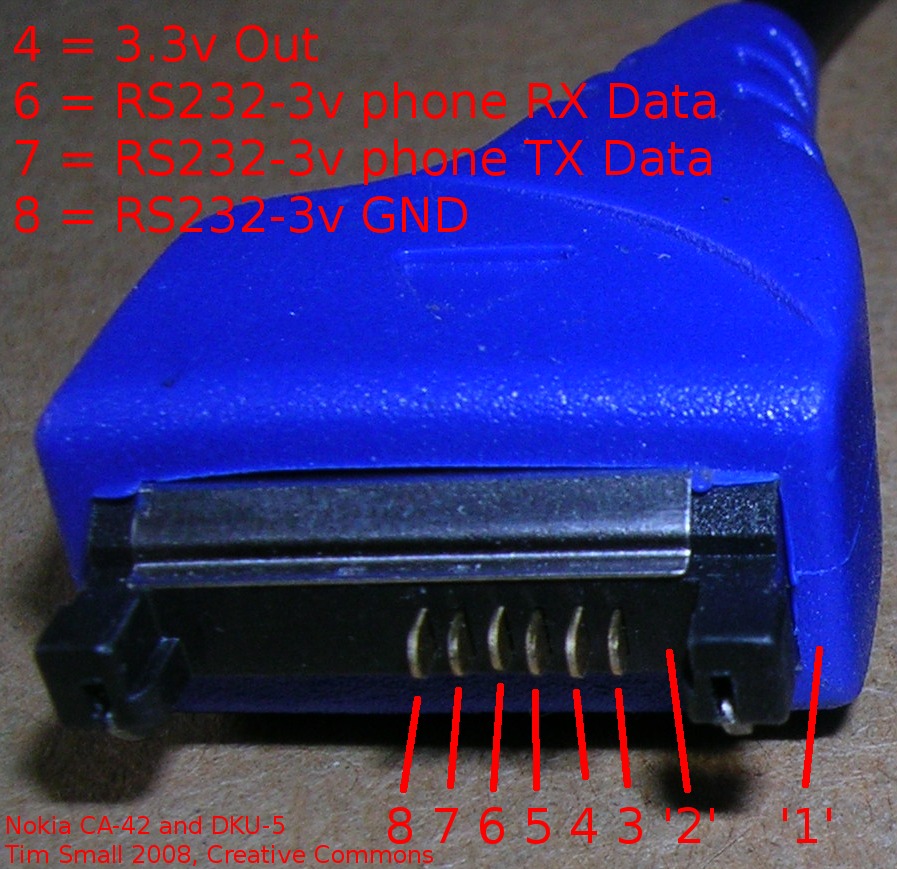

Using the diagram at:

white: TX (nokia pin 7) USB pin 2
Green: RX (nokia pin 6) USB pin 3
Black: GND (nokia pin 8) USB GND
Red: Vcc (nokia Pin 5) (connect to USB Vcc +5V) Acts as USB
power detection, connect to usb pin 1
